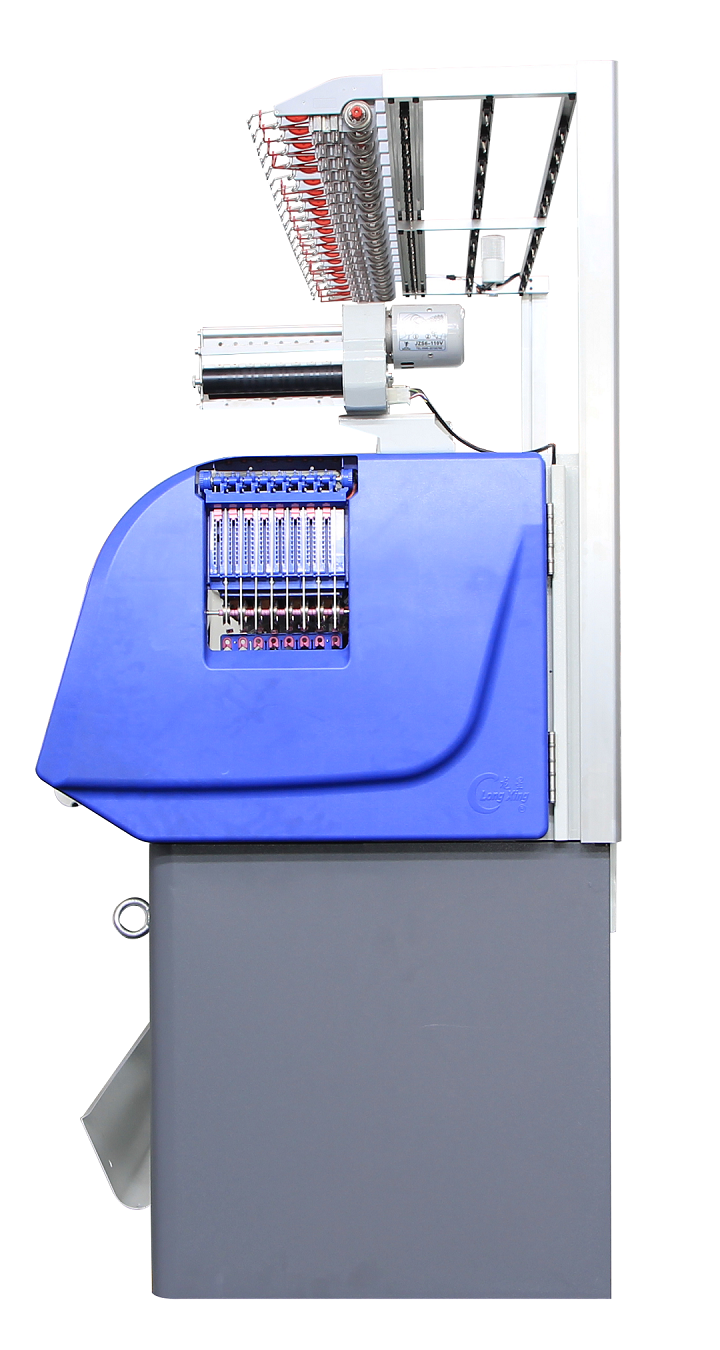

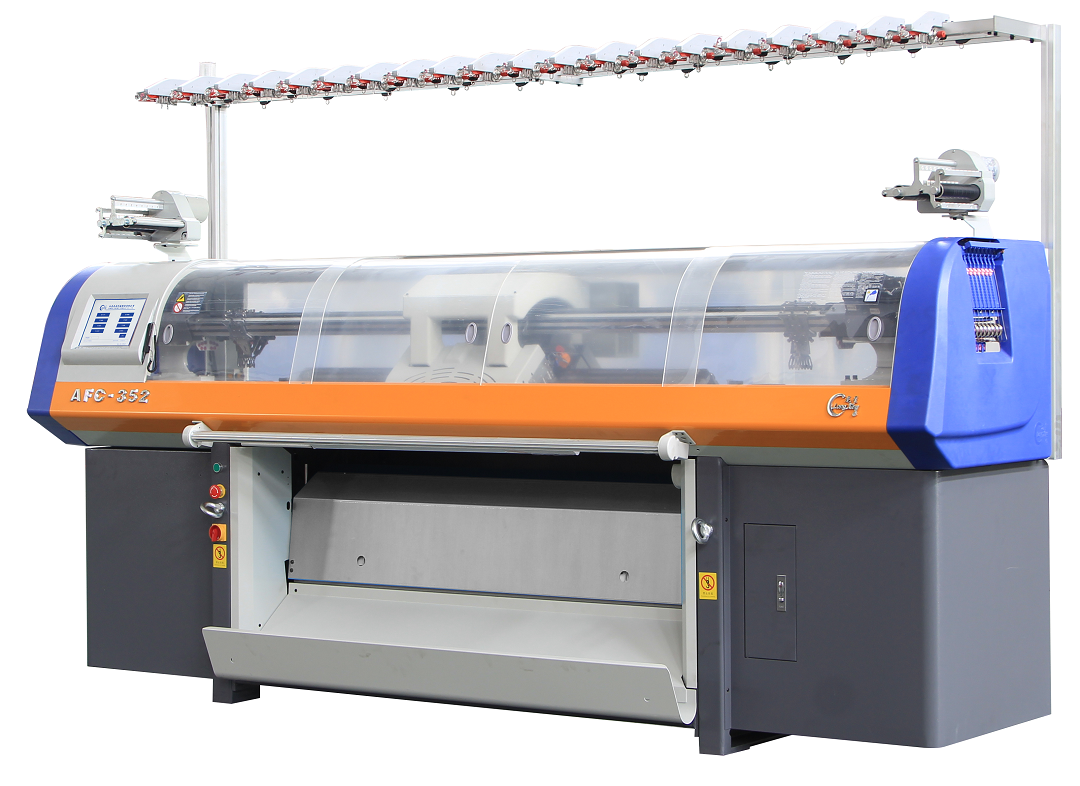

AFC Series Computerized Flat Knitting Machine
AFC Series Computerized Flat Knitting Machine
AFC Series Computerized Flat Knitting Machine
AFC Series Computerized Flat Knitting Machine
  • Introduction
  • Parameter

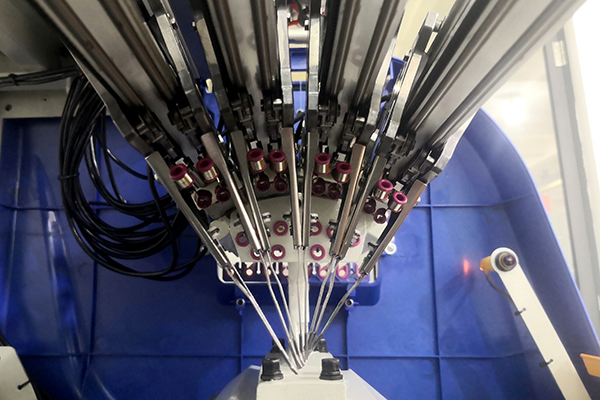

  • Equipped with 4 pcs arc-shaped feeder rail,16pcs auto motor-driven feeders, the movement of which is controlled by computer up or down. This could precisely realize the knitting of intarsia, inverse plating and reduce running course, to improve knitting efficiency. It is the latest innovative proprietary technology。

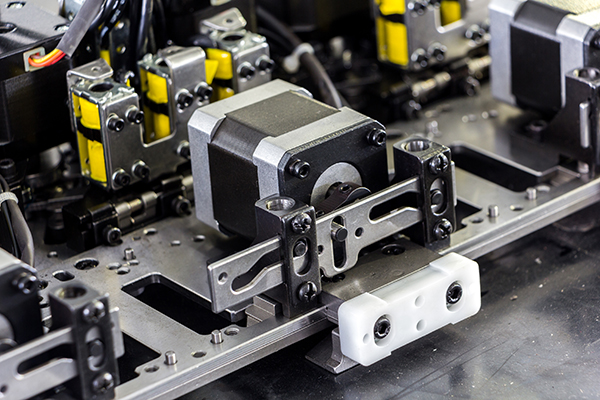

  • The cam system utilizes motor-controlled needle raising structure, carriage effective movement distance is shortened, carriage return become faster and more stable
  • The front and back capping structure are more colorful and smoother
  • Up-and-down motion of feeder is more useful and effective for making intarsia and capping structure

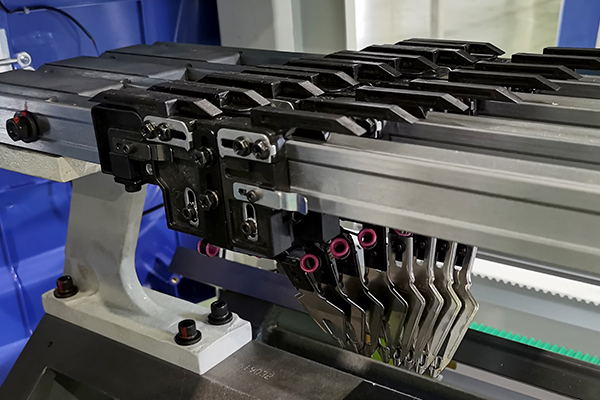

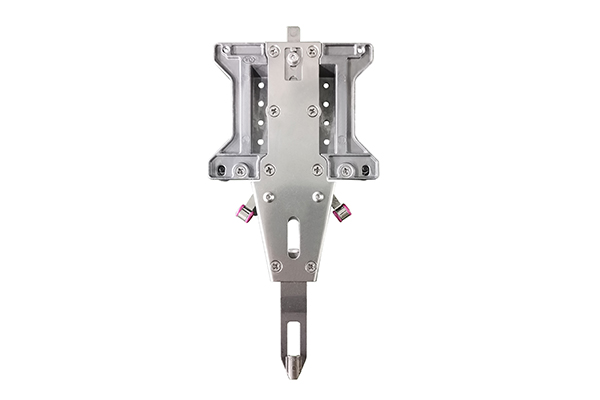

  • 4 pcs arc-shaped feeder rail ,16pcs auto motor-driven feeders, are utilized to reduce free carriage movement. Knitting efficiency are improved,16colors intarsia structure can be made maximumly
  • non-waste yarn starting comb is selectable for saving yarn an
  • Stable scissor and gripper are controlled by program. auto grip and cut motion are realized

Gauge

12G/12GV 14G/14GV 16G/18G

Knitwidth

52inch(132cm)

80inch(203cm)

Knittingsystem

singlecarriage(doubleandthreesystem)

Cam system

5.2-inchsmallercarriage

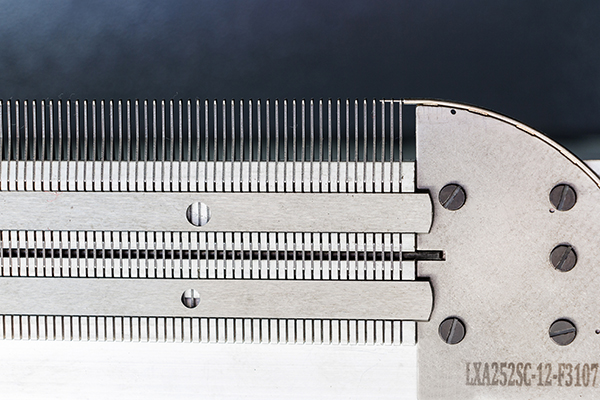

Needlebed

Insertplatemodel

Selectionsystem

8segmentPre-selectionsystem

Machinespeed

Maximum speed1.4meter/second,knittingspeedcouldbesethigherorloweraccordingtoknitstructureand yarnstrength

Needlebedracking

Maximum L/Rmovementrange4inch,drivenbyservomotor

Autostopdevice

Yarnbreakage,yarnknot,fabric-rewindneedlecollision,overload,setknitpiecefinish,specificlinestop,program error

Safetyequipment

Thewholemachineisequippedwithanti-noiseandanti-dustcover,infraredraysensor,emergencystop sensor,powercutoffdevice

Power

VoltageAC220v/AC380v,Frequency50Hz/60Hz,Powerconsumption:2Kw

Standardconfiguration

Rubberroller,combwithneedle/wire,twoscissorset

Rubberroller,combwithneedle/wire,twoscissorset, autodownroller

Optionalconfiguration

Autodownroller


Specificconfigurations

Arc-shapedfeederrailwithautomotor-driven
feeder/vacuumingsystem/twosetsoftoolkit

Arc-shapedfeederrailwithautomotor-driven
feeder/vacuumingsystem/twosetsoftoolkit
