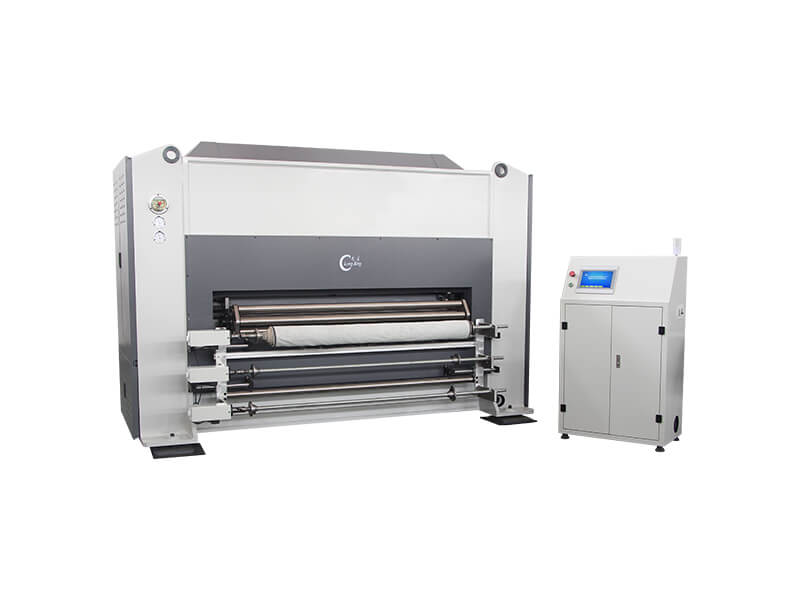

Computerized Jacquard Needle Punching Machine
Computerized Jacquard Needle Punching Machine
Computerized Jacquard Needle Punching Machine
  • Introduction
  • Parameter
  • Longxing brand computerized jacquard needle punching machine is a new type of fabric processing machinery with independent intellectual property rights, and independently developed by our company.

  • The machine adopted full computer servo control, all technical parameters and functions can be set, such as punch frequency, needle depth, roller tension, roller speed, intermittent length, etc.

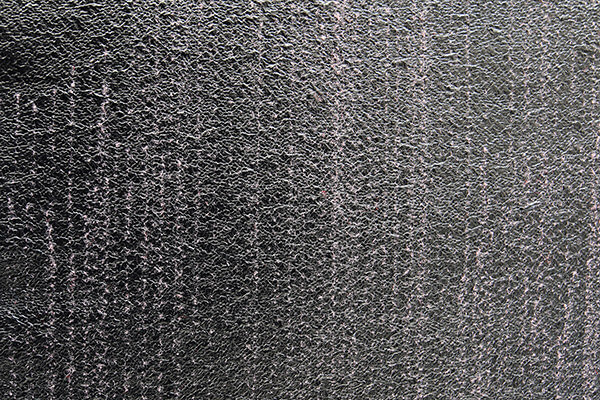

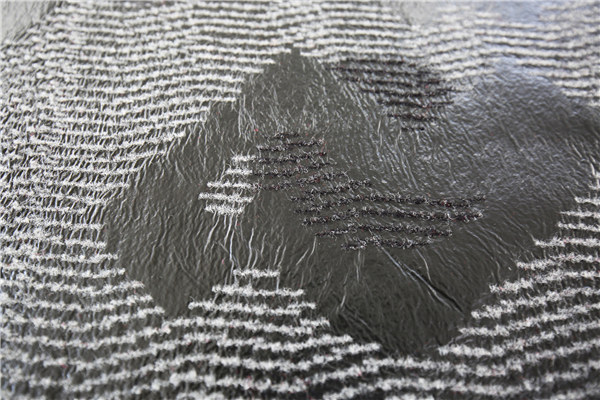

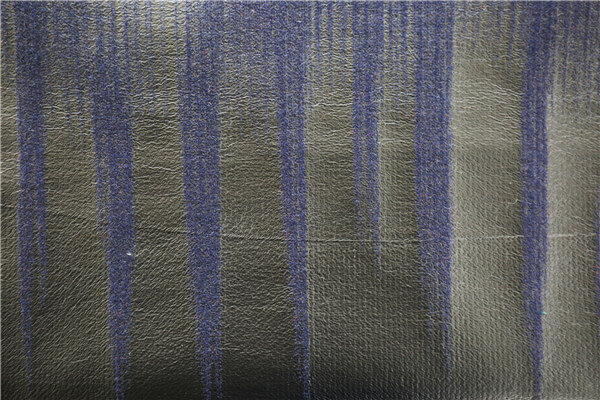

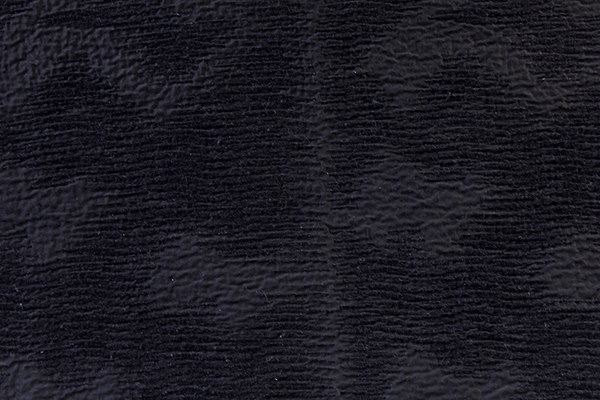

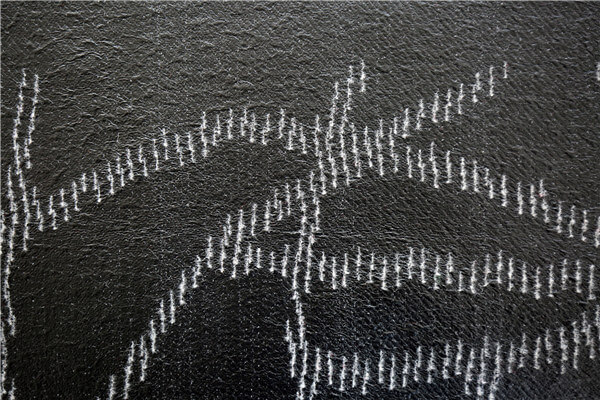

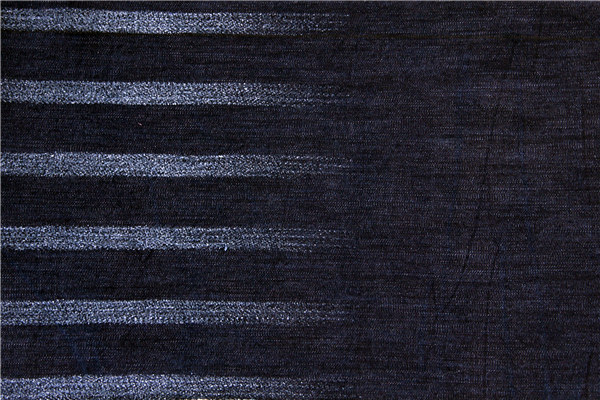

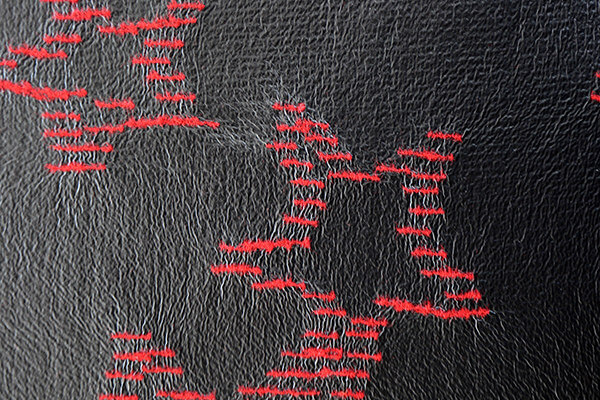

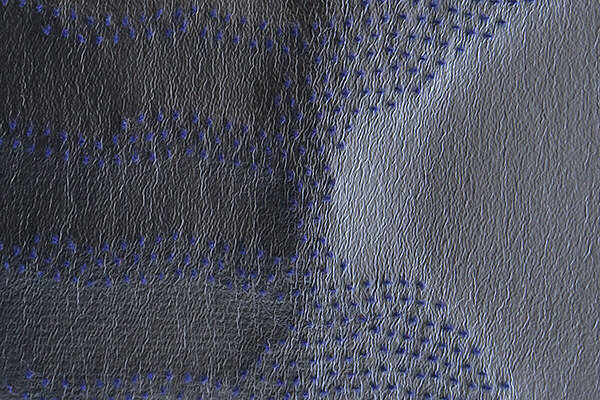

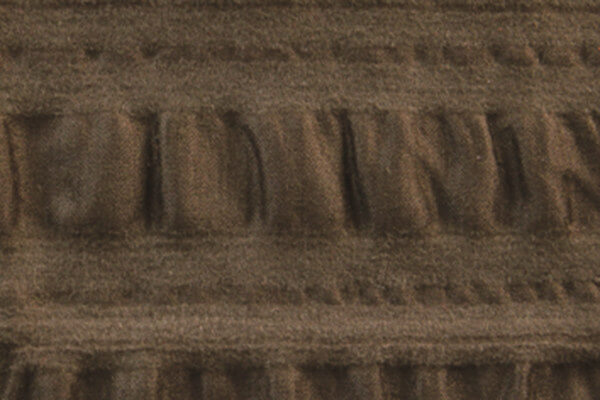

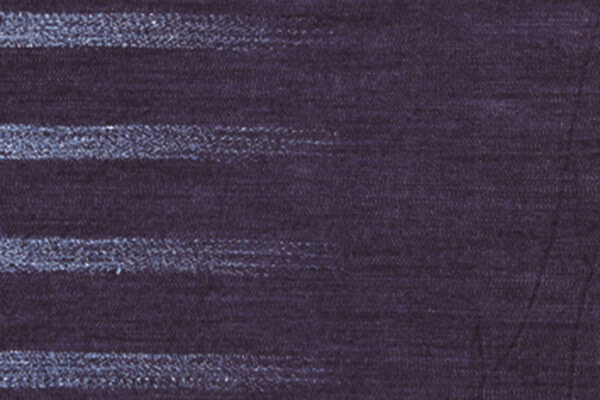

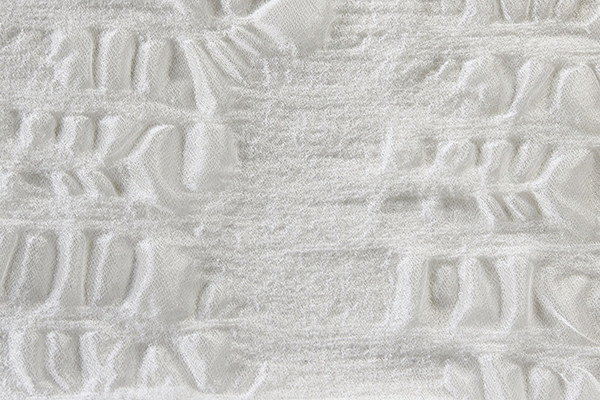

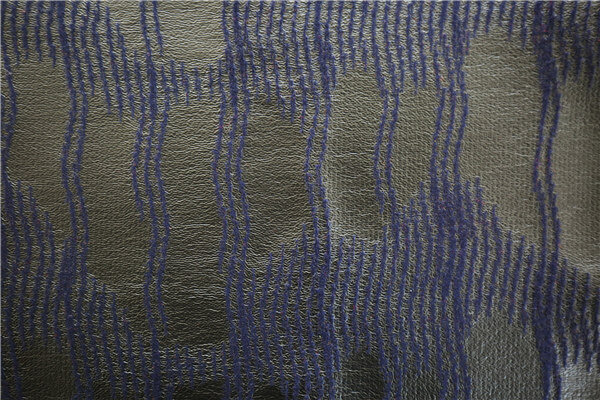

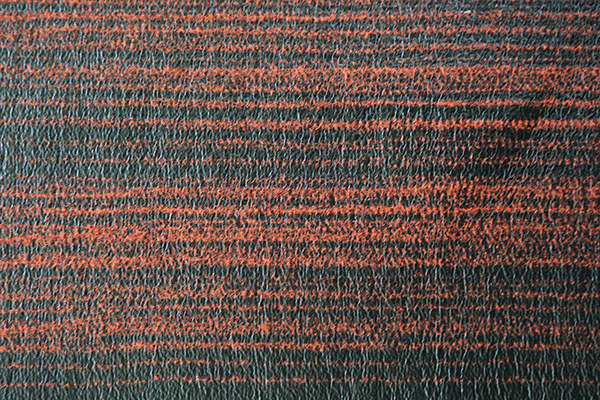

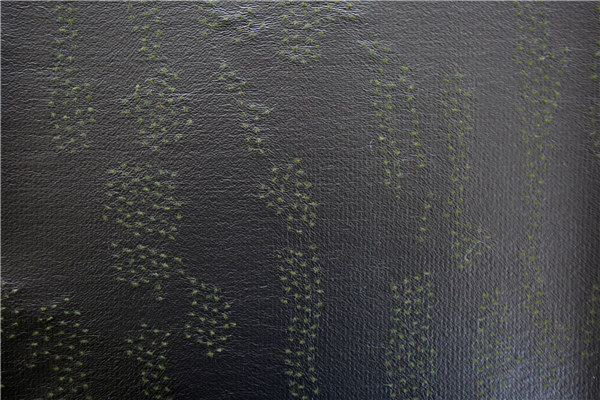

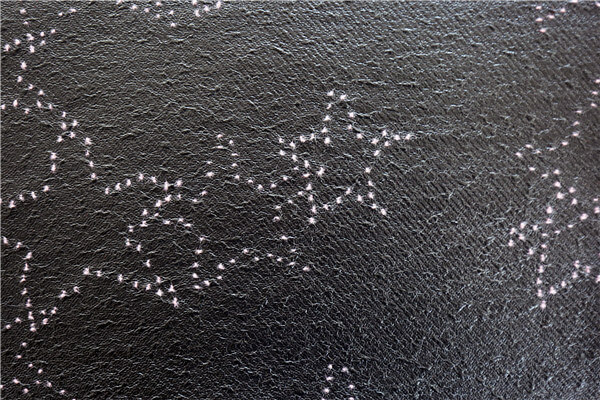

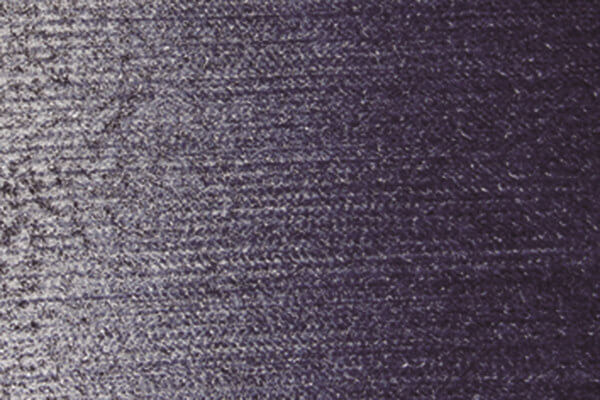

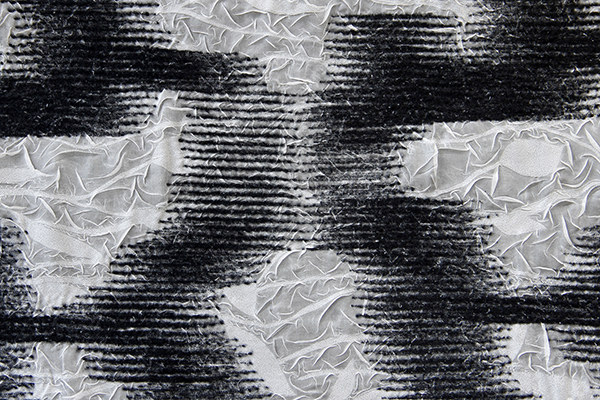

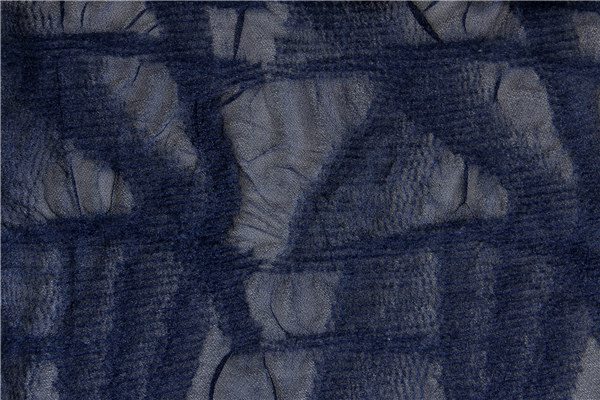

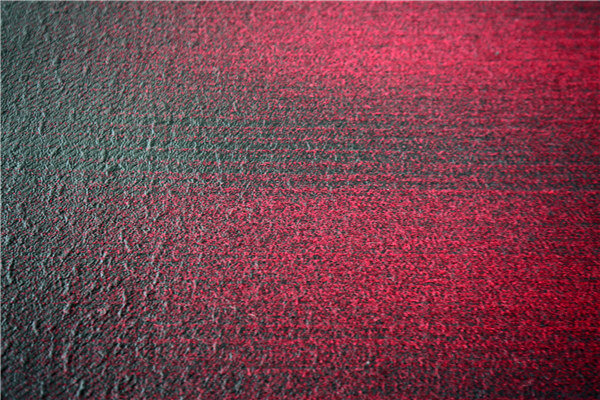

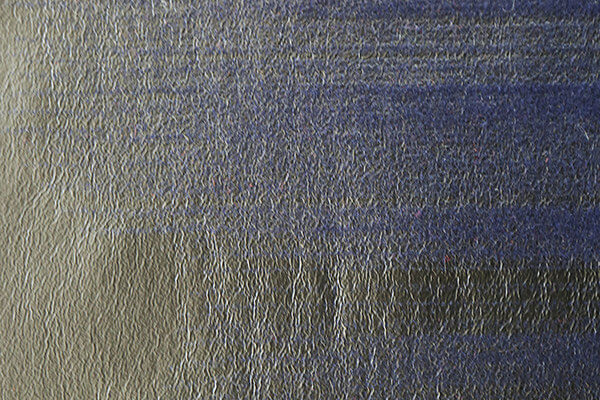

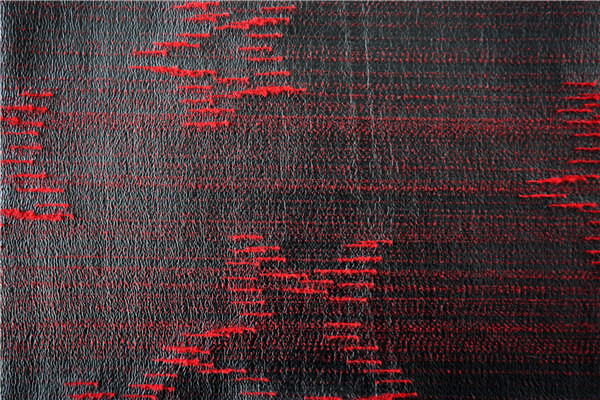

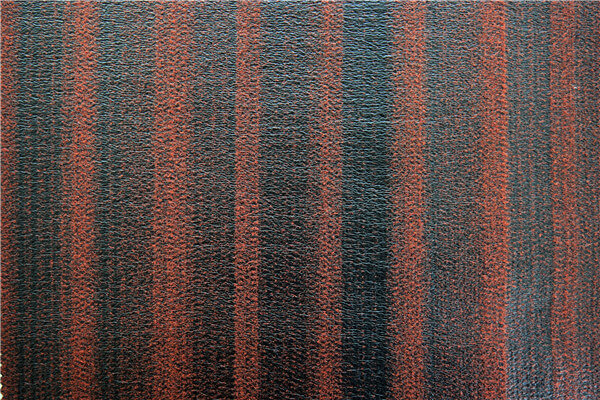

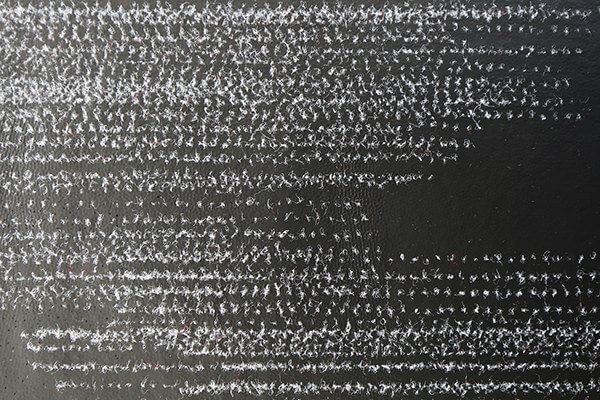

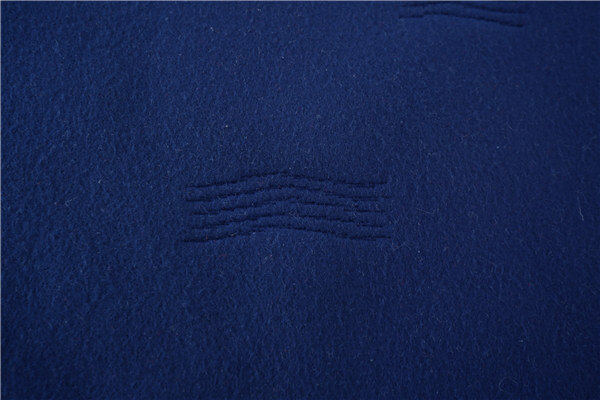

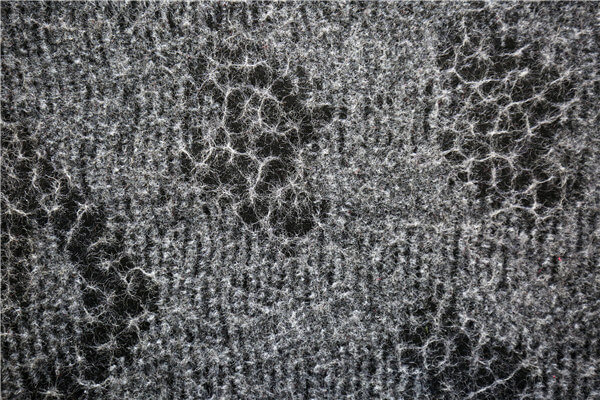

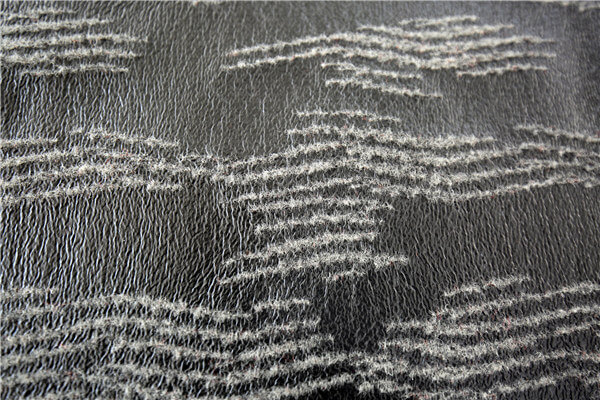

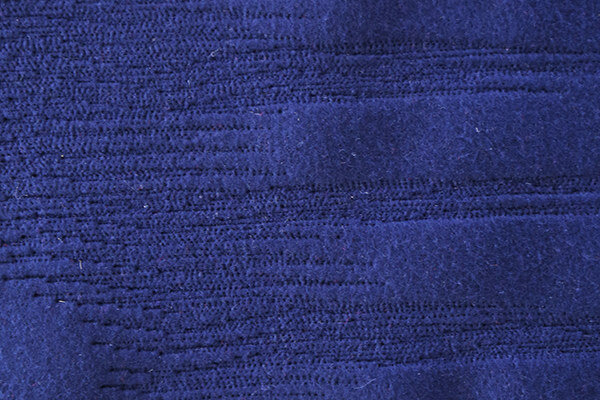

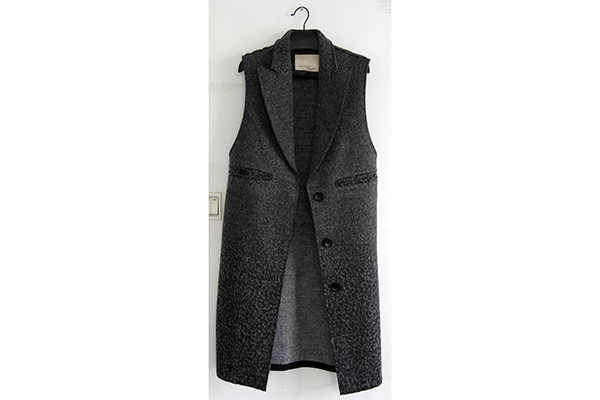

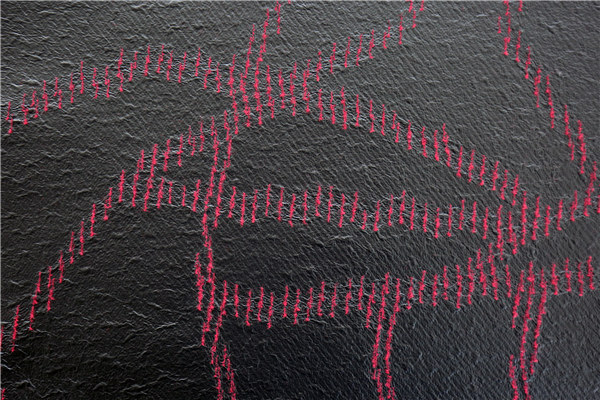

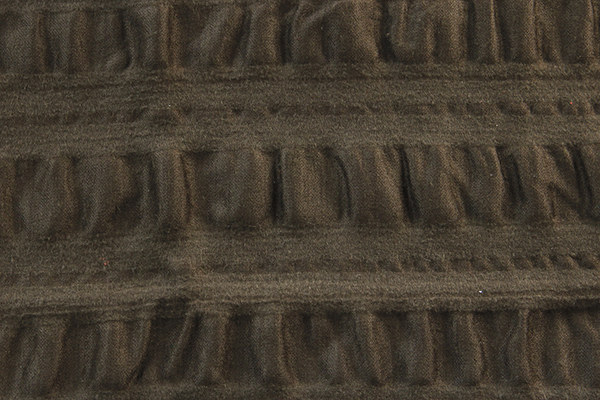

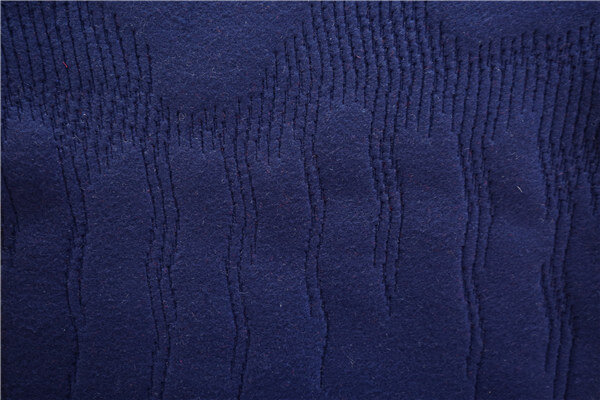

  • It has three functions of normal, intermittent and gradient, which could achieve four processes of tufting, compounding, location or overlap. It can not only meet the requirement of fabrics from spring to winter, and could also produce carpets, wall blankets, liners, shoe materials, etc. And which was suitable for the production of needled non-woven as well. Based on three functions and four processes, there are lots of pattern design and needle arrangement that could applied to the machine, such as full needle, regular graphics, abstract print, etc.

  • Longxing brand computerized jacquard needle punching machine currently has two specifications: JLZ2000 and JLZ800. The JLZ2000 is mainly for fabric post-processing to meet the needs of the market. The JLZ800 is a mini type of JLZ2000, which specially designed for teaching and designer studios, it is light, practical, easy to install and has fully functions.

Type
Main
Parameters

JLZ2000【1】

JLZ800【1】

Max Needle Width

2000mm

800mm

Max Needle Depth

30mm

30mm

Max Needle Frequency

1365 times/min

666 times/min

Roller

Max output speed 24m/min, roller has 5 levels of pressure to set, controlled by computer.

Max output speed 12m/min, roller has only 1 pressure, controlled by computer.

Dust Collection

Times and duration can be set.

Same

Control System

PLC system

Same

Stop Function

Needle board back to origin automatically when stopped.

Same

Needle Board Replace

Automatic needle board replace position by press the button.

Same

Safety Device

Air, oil pressure, motor overload, board limit, shield, emergency stop, alarm automatic stop.

Same

Power Consumption【2】

AC380V, 50HZ, 19.9KW

AC380V, 50HZ, 9.75KW

Net Weight (kg)

6000

3000

Gross Weight (kg)

6500

3500

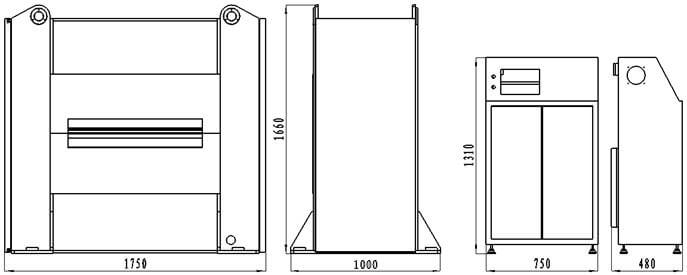

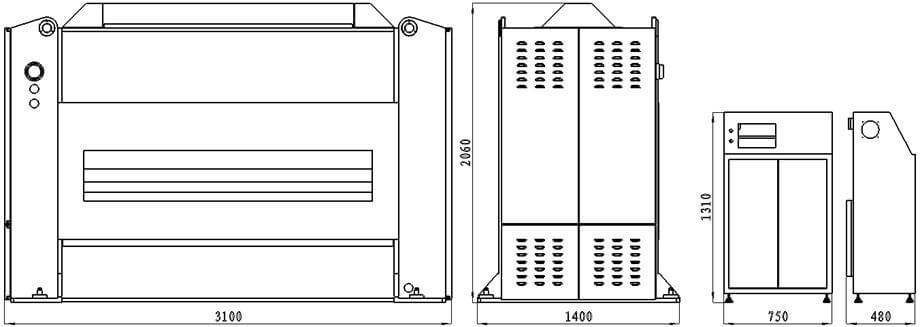

Boundary Size (mm)

3100(Length)×1400(Width)×2060(Height)

1750(Length)×1000(Width)×1660(Height)

Package Size (mm)

3200(Length)×1500(Width)×2160(Height)

1850(Length)×1100(Width)×1760(Height)

Control Cabinet (mm)

750(Length)×480(Width)×1310(Height)

Same

【1】“JL”main JIANGSU JINLONG TECHNOLOGY CO.,LTD.;“Z”main JLZ2000 Computerized Jacquard Needle Punching Machine;“2000”and“800”main Max Needle Width.

【2】The actual power consumption is much lower than the value, depending on speed and working conditions.
